PIPE & TUBE STORAGE STORAGE
Telescopic Rack Solutions
Pipe & Tube Storage Storage Challenges
Pipe and tube storage presents one of the most challenging scenarios in industrial warehousing. Round cross-sections want to roll, long lengths (up to 12 meters) create handling difficulties, and heavy wall thicknesses mean extreme weight per bundle. Steel pipes, PVC conduit, copper tubing, stainless steel tubes, and structural hollow sections all require specialized storage that prevents rolling, supports full length, and enables individual bundle access without disturbing adjacent inventory.
Materials We Store
Industry-Specific Challenges
- Rolling: Round pipes and tubes roll when placed on flat surfaces. Unsecured pipes are a serious safety hazard and inventory management nightmare.
- Length: Standard pipe lengths of 6m and 12m require long-span storage. Short racks waste space; floor stacking wastes floor area.
- Weight: Heavy-wall steel pipes can weigh 50-200 kg per meter. A 12m bundle can exceed 5 tons. Storage must handle extreme linear loads.
- Diameter Mix: Pipe inventories include dozens of diameter/wall thickness combinations. Quick identification and access to specific sizes is critical.
- Corrosion: Bare steel pipes rust quickly in humid environments. Organized rack storage with proper spacing allows air circulation and reduces corrosion.
How Tcrack Solves These Challenges
ANTI-ROLL DESIGN
V-shaped or cradle-style arm surfaces prevent round materials from rolling. Secure storage without strapping or blocking.
12M LENGTH SUPPORT
Multi-bay configurations with synchronized arms support pipes up to 12 meters. No sagging, no end overhang.
BUNDLE SEPARATION
Each arm level stores one bundle or diameter group. Pull specific pipes without disturbing other inventory.

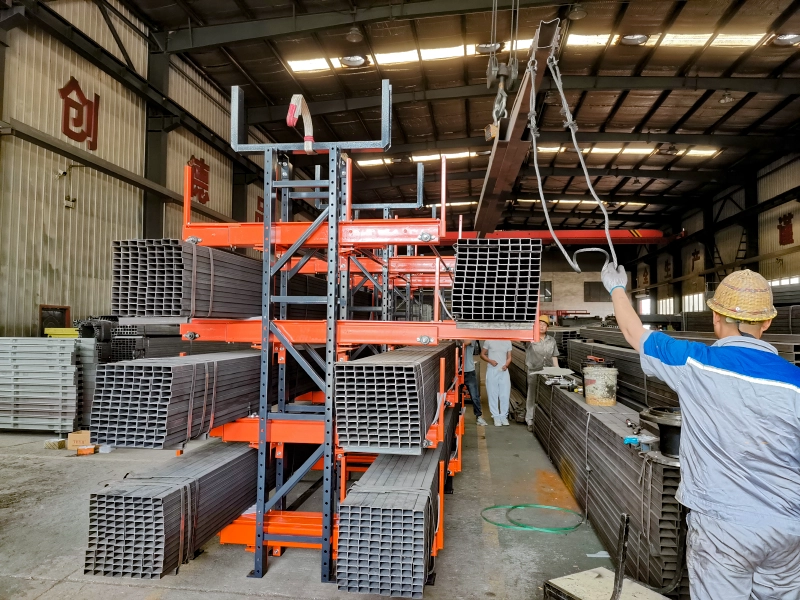

CRANE DIRECT ACCESS
Overhead crane with pipe clamps or slings picks directly from extended arms. No forklift, no rolling hazard, no manual handling.
Recommended Configuration
| Parameter | Recommendation |
|---|
| Rack Series | TC Series (heavy loads) or TE Series (wide materials) |
| Load Capacity | 1,000-5,000 kg per arm (based on material weight) |
| Arm Levels | 3-6 levels (optimized for material mix) |
| Drive System | Motorized recommended for >20 cycles/day |
| Surface Treatment | Powder coating (indoor) or hot-dip galvanizing (outdoor/corrosive) |
